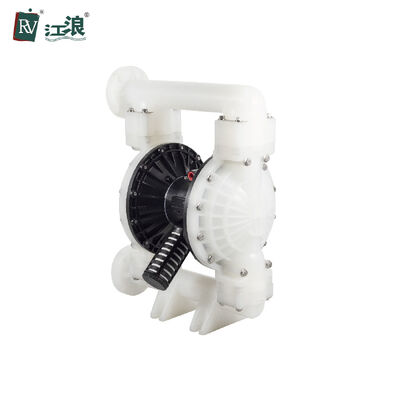

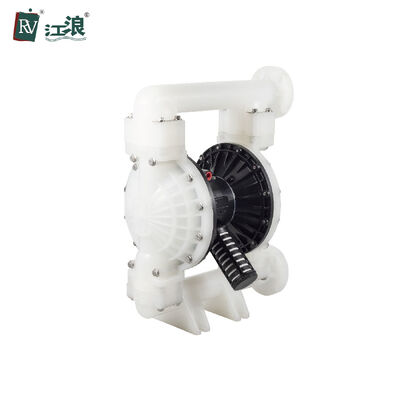

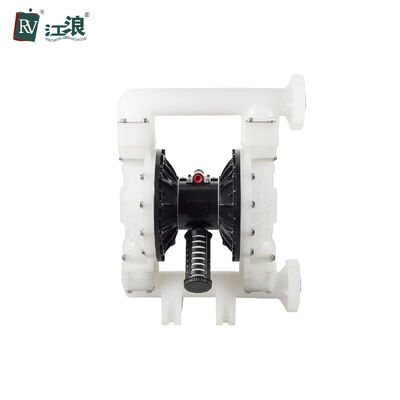

Dettagli:
|
| application: | Other | pressure: | Low Pressure |
|---|---|---|---|
| warranty: | 1 year | Applicable temperature: | 5-80°C |
| customized support: | OEM, ODM | Discharge Pipe Size: | 2 in |
| outlet size: | 50MM | Outlet Type: | french style |
| power source: | Pneumatic | Sealing Material: | PTFE |
| structure: | Diaphragm Pump | suction head: | 5m |
| Material: | PP | Name: | Diaphragm Pump |
| Color: | white | Weight: | 30kgs |
| Diaphragm: | SP(EPDM) | Brand: | RV |
| Packing: | carton | Max pressure: | 120psi(0.84Mpa,8.4bar) |
| Pump body: | pp | Max Flow: | 150gpm(570lpm) |
| Evidenziare: | Pompa a membrana in plastica da 2 pollici,pompa a membrana pneumatica per il trattamento delle acque,pompa a membrana ad azionamento pneumatico per la lavorazione |
||
Pressione di lavoro massima | 120 psi (0,84Mpa, 8,4bar) |
Tasso di flusso massimo | 150 gpm ((570L/M) |
Velocità massima reciproca | 145cpm |
Altezza massima di aspirazione (aspirazione a secco) | 5 metri |
Grano massimo consentito | 0.2in. (6mm) |
Consumo massimo di aria | 140 cm3 (70 L/S) |
Dimensione dell'entrata d'aria | 1/2 pollice |
Dimensione della presa d'aria | 3/4 in |
Dimensione dell'entrata del fluido | 2 in |
Dimensione dell'uscita del liquido | 2 in |
Peso | Pompa PP: 31 kg |
