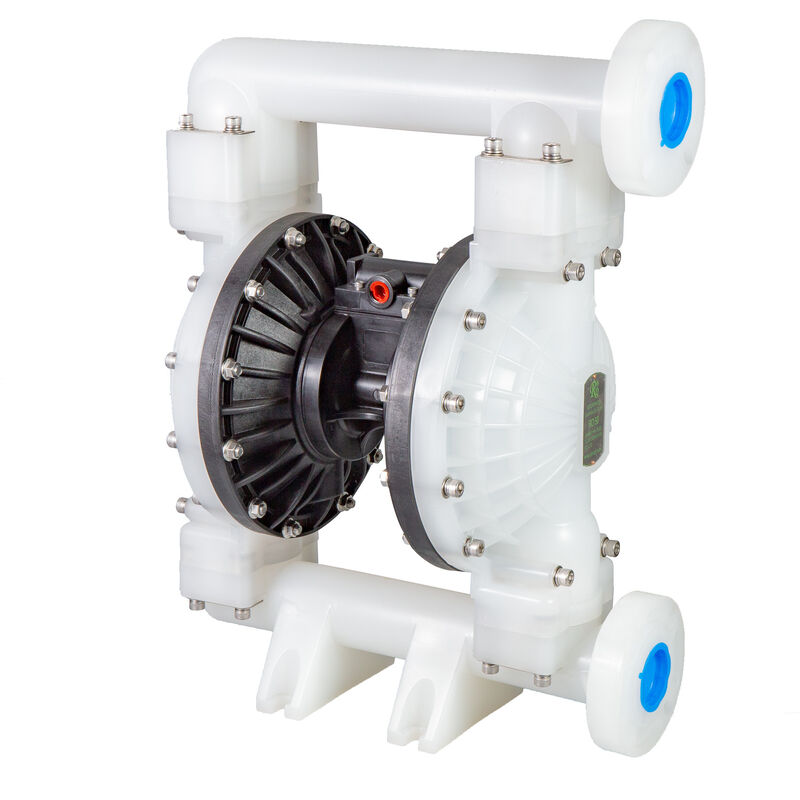

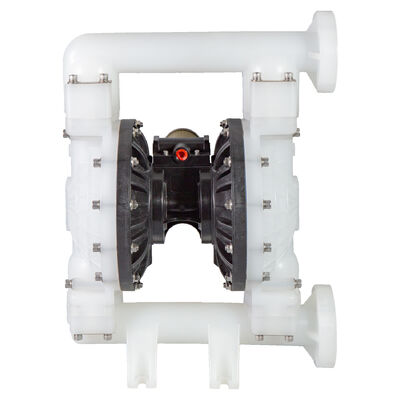

Dettagli:
|
| application: | Other, Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking Water Treatment, Family Homes, Food And Beverage Industry, Hvac OEM, Industrial Boilers, Industrial Utilities, Irrigation and Ag | pressure: | Low Pressure |
|---|---|---|---|
| warranty: | 1 year | customized support: | OEM, ODM |
| power source: | Pneumatic | structure: | Diaphragm Pump |
| voltage: | None | Material: | PP |
| Name: | Diaphragm Pump | Color: | white |
| Weight: | 30kgs | Diaphragm: | SP(EPDM) |
| Brand: | RV | Packing: | carton |
| Max pressure: | 120psi(0.84Mpa,8.4bar) | Pump body: | pp |
| Max Flow: | 150gpm(570lpm) | ||
| Evidenziare: | Pompa a diaframma pneumatica da 2 pollici,Pompa per acque reflue azionata ad aria in PP,pompa a membrana in plastica con garanzia |
||
Pressione massima di esercizio | 120 psi (0,84 MPa, 8,4 bar) |
Portata massima | 150 gpm (570 L/M) |
Velocità massima di reciprocazione | 145 cpm |
Altezza massima di aspirazione (aspirazione a secco) | 5 m |
Granulometria massima ammissibile | 0,2 pollici (6 mm) |
Consumo d'aria massimo | 140 scfm (70 L/S) |
Dimensione ingresso aria | 1/2 pollice |
Dimensione uscita aria | 3/4 di pollice |
Dimensione ingresso fluido | 2 pollici |
Dimensione uscita fluido | 2 pollici |
Peso | Pompa in PP: 31 kg |
