Dettagli:
|
| warranty: | 1 year | customized support: | OEM, ODM |
|---|---|---|---|
| application: | Other, Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Ag | power source: | Pneumatic |
| pressure: | Low Pressure | structure: | Diaphragm Pump |
| outlet size: | 25mm | voltage: | None |
| power: | None | motor: | None |

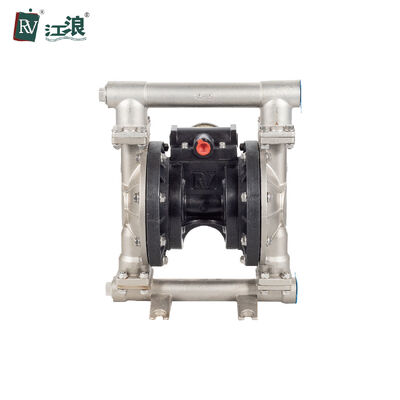

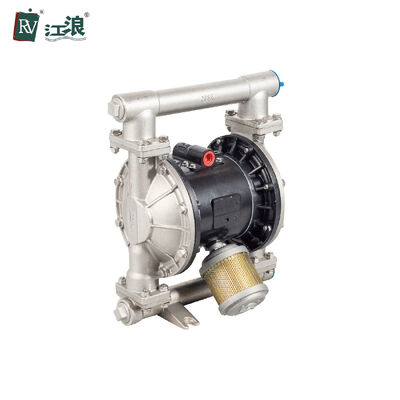

| Material: | 304 Stainless Steel | Name: | AODD Pump |
| Color: | silver | Diaphragm: | PTFE |
| Speed: | 276cpm | Brand: | RV |
| Packing: | carton | Max pressure: | 120psi(0.84Mpa,8.4bar) |
| Pump body: | 304 Stainless Steel | Max Flow: | 40gpm(150lpm) |
| Evidenziare: | Pompa a diaframma a 1 pollici di acciaio inossidabile,Pompa a diaframma in PTFE per le acque reflue,pompe pneumatiche a diaframma per acqua potabile |
||
Pressione massima di esercizio | 120 psi (0.84Mpa , 8.4bar) |
Portata massima | 40gpm(150lpm) |
Velocità massima di pompaggio alternato | 276cpm |
Altezza massima di aspirazione (aspirazione a secco) | 5m |
Granulometria massima ammissibile | 0.16in. (4mm) |
Consumo d'aria massimo | 45scfm(22.5L/S) |
Dimensione ingresso aria | 1/2 in |
Dimensione uscita aria | 3/4 in |
Dimensione ingresso fluido | 1in |
Dimensione uscita fluido | 1in |
Peso | Pompa in acciaio inossidabile:15.7KGS |
