Dettagli:
|
| application: | Other, Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking Water Treatment, Family Homes, Food And Beverage Industry, Hvac OEM, Industrial Boilers, Industrial Utilities, Irrigation and Ag | warranty: | 1 year |
|---|---|---|---|
| customized support: | OEM, ODM | power source: | Pneumatic |

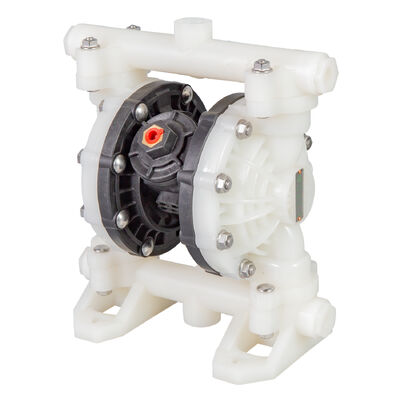

| structure: | Diaphragm Pump | Product name: | Pneumatic Diaphragm Pump |
| Material: | PVDF | Color: | white |
| Feature: | Simple structure, durable | Brand: | RV |
| Max pressure: | 100psi(0.7Mpa,7bar) | Package: | carton |
| Weight: | 3.7kgs | Max Flow: | 15gpm(57lpm) |
| Ball: | victon | ||
| Evidenziare: | Pompa a membrana in PVDF per il trattamento delle acque reflue,Pompa a diaframma pneumatica da 1/2 pollice,Pompe a sfera VT per l'industria farmaceutica |
||
Pressione di lavoro massima | 100 psi (0,7Mpa, 7bar) |
Tasso di flusso massimo | 15 gpm ((57L/M) |
Velocità massima reciproca | 400cpm |
Altezza massima di aspirazione (aspirazione a secco) | 15 piedi (4,5 m) |
Grano massimo consentito | 3/32 pollici (2.5 mm) |
Consumo massimo di aria | 20 sqm ((10L/S) |
Dimensione dell'entrata d'aria | 1/4 in |
Dimensione della presa d'aria | 3/8 in |
Dimensione dell'entrata del fluido | 1/2 in |
Dimensione dell'uscita del liquido | 1/2 pollice |
Peso | Pompa PVDF: 3,4 kg |
