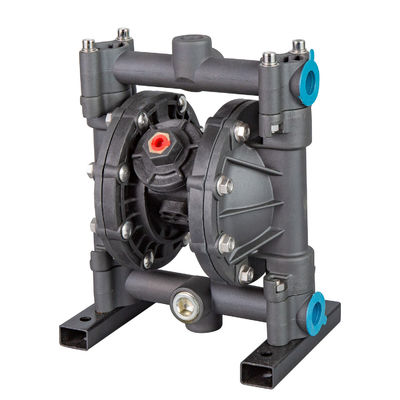

1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate

1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate
1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate 1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate 1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate 1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate 1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate 1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate

Grande immagine :  1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate

Dettagli:
Luogo di origine: Shanghai, Cina
Marca: RV
Numero di modello: RV-P-53366-T
Termini di pagamento e spedizione:
Quantità di ordine minimo: 2
Prezzo: $188
Contatto

1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate

descrizione
Pressione massima: 0.1 -10 bar Portata massima: 15gpm (57L/M)
Testa di aspirazione: 7 m. Velocità massima reciproca: 400cpm
Altezza massima di aspirazione: 4,5 m. Grano massimo consentito: 2,5 mm
Max Air Consumption: 20 SCFM (10l/s) dimensione dell'ingresso dell'aria: 1/4 in
Dimensione della presa d'aria: 3/8 poll Dimensione dell'ingresso fluido: 1/2 3/4 in
Dimensione del fluido outlet: 1/2 3/4in Peso: 4,5 kg
Materiale a membrana: Politetrafluoroetilene (PTFE) Temperatura applicabile: Da 5°C a 80°C
Fonte di energia: Pneumatico
Evidenziare:

100–500 L/min Flow Rate Pneumatic Diaphragm Pump

,

7 m Suction Head Air Operated Diaphragm Pump

,

57L/M Flow Rate Double Diaphragm Pump

1/2 Slurry Pneumatic Pump Water Mud Pump Aluminum Air Double Diaphragm Pump
Product Specifications
Max Working Pressure 100 psi (0.7Mpa, 7bar)
Max Flow Rate 15gpm (57L/M)
Max Reciprocating Speed 400cpm
Max Suction Height (Dry Sucking) 4.5 m
Max Permitted Grain 2.5mm
Max Air Consumption 20 scfm (10L/S)
Air Inlet Size 1/4 in
Air Outlet Size 3/8 in
Fluid Inlet Size 1/2 - 3/4 in
Fluid Outlet Size 1/2 - 3/4 in
Weight Aluminum pump: 4.5KGS
Stainless steel pump: 6.8KGS

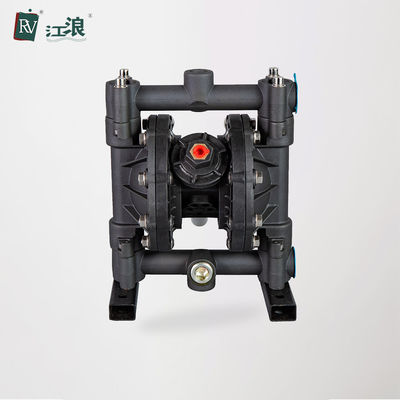

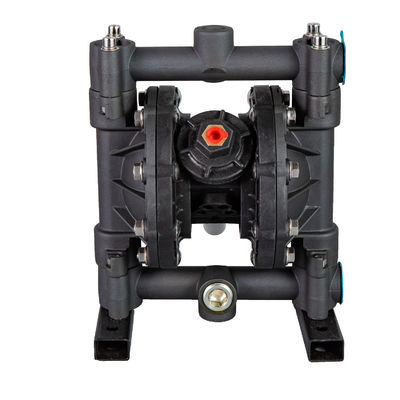

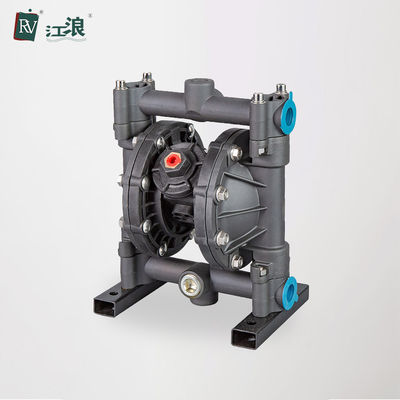

Product Images
1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate 0 1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate 1
Our Advantages
1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate 2
Packing & Delivery
1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate 3 1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate 4 1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate 5 1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate 6
Company Profile
1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate 7
Company Introduction

Shanghai Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China. Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.

We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities. Our main products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and related products.

The pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Shanghai Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and other certifications.

Shanghai Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.

Shanghai Jianglang has established long term business relationship with famous enterprises such as BASF, Bayer, SAMSUNG etc. Its RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.

We offer various material options, and our engineers will select the most suitable and economical material for you according to your specific working conditions.

Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.

Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.

Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"

Connection type:

  • Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
  • Flanged connection: Plastic pumps from 1/2" to 3".
Our Service
1/2 Inch Aluminum Pneumatic Diaphragm Pump with 100–500 L/min Flow Rate 7 m Suction Head and 57L/M Flow Rate 8
All enquiries will be replied within 24 working hours
Professional pump producer with dedicated design team
All goods packed with standard export wooden case (non-fumigation)
Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment?
A: D/P, T/T, Western Union, please confirm with us with exact order.
Q: What is the delivery time?
A: Depends on the quantity. Generally 1-7 working days.
Q: What about package?
A: Cartons with foam inside & wooden case & Pallet.
Q: How are the products delivered to us?
A: By International express or Sea.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
