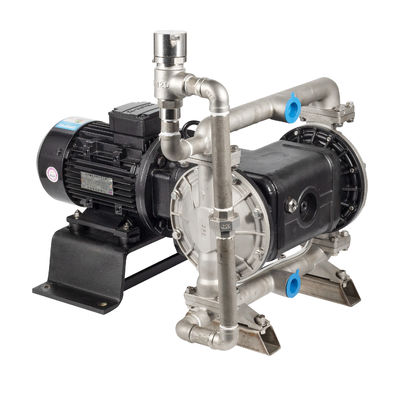

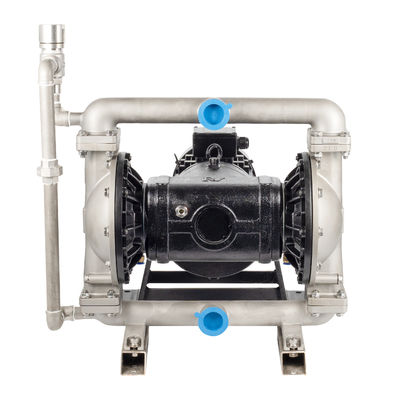

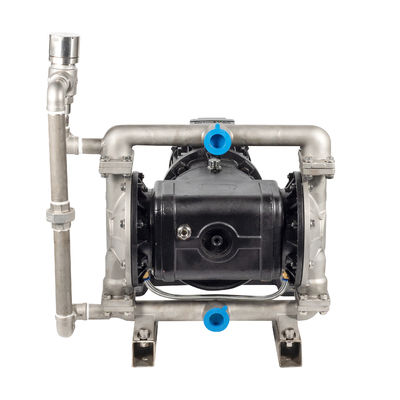

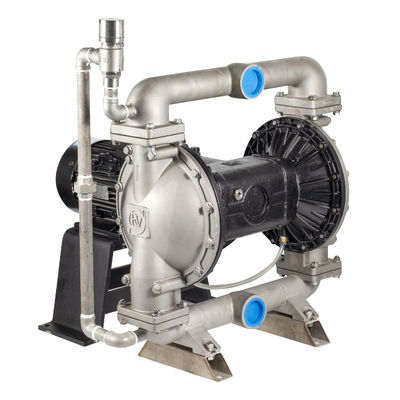

Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications

Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications
Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications

Grande immagine :  Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications

Dettagli:
Luogo di origine: Shanghai, Cina
Marca: RV
Termini di pagamento e spedizione:
Quantità di ordine minimo: 2
Prezzo: $1,365
Contatto

Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications

descrizione
Pressione massima: 0.6MPA Portata massima: 3,5m3/h
Ascensione di aspirazione: 3m Potenza motoria: 2.2kw
Velocità del motore: 1450r/min Dimensione Tubo di Scarico: 1-1/2 dentro
Fonte di energia: Pneumatico Materiale di tenuta: Diaframma
Materiale della pompa: SST Materiale diaframma: Ptfe
Corpo di pompa: SST Struttura: Pompa del diaframma
Compatibilità chimica: acqua Tipo di pressione: Bassa pressione
Tipo di connessione: Fabbricazione a partire da prodotti della voce 8528
Evidenziare:

Stainless Steel Double Diaphragm Pump

,

Pneumatic Air-Operated AODD Pump

,

1-1/2 In Discharge Diaphragm Pump

Stainless Steel Pneumatic Double Diaphragm Pump

High-performance air-operated pump designed for irrigation, wastewater treatment, marine applications, and machining processes. Custom configurations available.

Technical Specifications
Parameter Value
Max Working Pressure 0.6Mpa
Max Flow Rate 3.5m³/h
Suction Lift 3m
Motor Power 1.5kW standard (2.2kW optional)
Motor Speed 1450r/min
Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications 0
Product Advantages
Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications 1
Packing & Delivery
Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications 2
Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications 3
Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications 4
Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications 5
Manufacturer Profile
Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications 6
Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. As a High-Tech Enterprise and Credit Company, we specialize in precision manufacturing of diaphragm pumps and control valves.
Product Range
  • Pneumatic and Electric Diaphragm Pumps
  • Piston Pumps and Powder Pumps
  • Sanitary Pumps with Leakage Detection
  • Pneumatic Diaphragm Regulating Valves
  • Control Valves and Sequencing Valves
Certifications & Standards
  • 40+ patents including 10 invention patents
  • Contributor to SH/T 3191-2017 national standard
  • Certifications: TS, CE, ATex, ISO9001, SGS
Material Options
  • Wetted parts: PP, PVDF, Acetal, Aluminum, Stainless Steel
  • Diaphragms: Teflon, Santoprene, Viton, Hytrel, Buna-N
  • Connection types: Threaded (1/4"-1-1/2") or Flanged (1/2"-3")
Customer Service
Stainless Steel Pneumatic Air-Operated Double Diaphragm Pump with 1-1/2 In Discharge for Industrial Applications 7
  • 24-hour response to all inquiries
  • Professional design and engineering team
  • Standard export packaging (non-fumigation wooden cases)
  • Comprehensive after-sales support
Frequently Asked Questions
What is the minimum order quantity?
1 piece for standard products. Sample orders available with cost deductible from future purchases.
What payment methods do you accept?
D/P, T/T, Western Union - confirmed with each order.
What is the typical delivery time?
1-7 working days depending on order quantity.
How are products packaged?
Foam-protected cartons, wooden cases, or pallets for secure shipping.
What are the warranty terms?
15 years for air motor, 5 years for pump body.
Can you produce custom specifications?
Yes, we can manufacture products to meet specific customer requirements.
