304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment

304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment
304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment 304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment 304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment 304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment 304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment 304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment

Grande immagine :  304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment

Dettagli:
Luogo di origine: Shanghai, Cina
Marca: RV
Numero di modello: RV-S-74388-T
Termini di pagamento e spedizione:
Quantità di ordine minimo: 2
Prezzo: $660.50
Contatto

304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment

descrizione
Materiale: Acciaio inossidabile Pressione massima: 120psi (0,84 MPA, 8,4 bar)
Flusso massimo: 40 GPM (150pm) Velocità massima reciproca: 276cpm
Altezza massima di aspirazione: 5m Grano massimo consentito: 0.16in. (4mm)
Max Air Consumption: 45SCFM (22,5l/s) dimensione dell'ingresso dell'aria: 1/2 in
Dimensione della presa d'aria: 3/4 dentro Dimensione dell'ingresso fluido: 1in
Dimensione del fluido outlet: 1in Peso: Pompa in alluminio: 8,2 kg, pompa in acciaio inossidabile: 15,7 kgs
Fonte di energia: Pneumatico Struttura: Pompa del diaframma
Materiale a sfera: VT
Evidenziare:

304 Stainless Steel Diaphragm Pump

,

1" Air Double Diaphragm Pump

,

Max Pressure 120psi Pneumatic Diaphragm Pump

304 Stainless Steel Air-Driven Diaphragm Pump
1" Pneumatic Power Source for Wastewater & Drinking Water Treatment
Product Specifications
Specification Value
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 40gpm (150pm)
Max Reciprocating Speed 276cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.16in. (4mm)
Max Air Consumption 45scfm (22.5L/S)
Air Inlet Size 1/2 in
Air Outlet Size 3/4 in
Fluid Inlet Size 1in
Fluid Outlet Size 1in
Weight Aluminum pump: 8.2KGS
Stainless steel pump: 15.7KGS

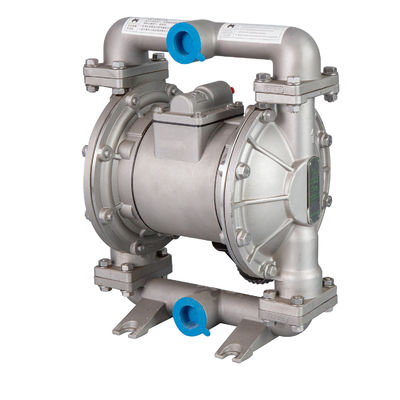

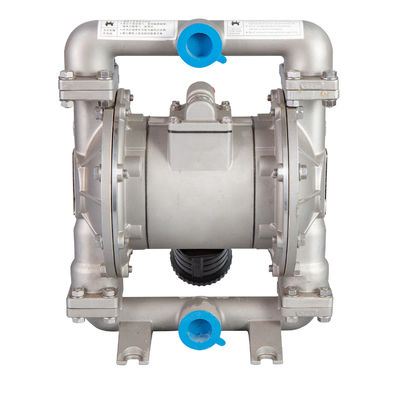

Product Images
304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment 0 304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment 1
Our Advantages
304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment 2
Packing & Delivery
304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment 3 304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment 4 304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment 5 304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment 6

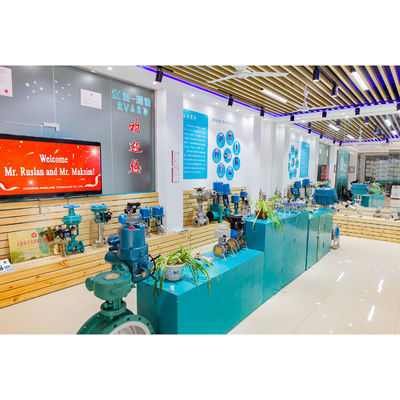

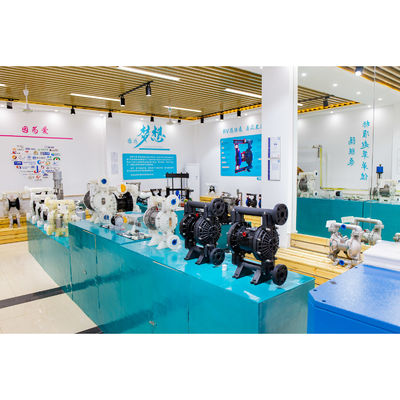

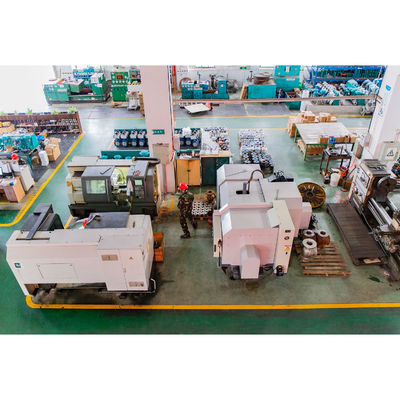

Company Profile
304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment 7
Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. As a High-Tech Enterprise and Credit Company, we specialize in diaphragm pumps and control valves with over 40 patents.
Our Service
304 Stainless Steel Air Double Diaphragm Pump 1" with Max Pressure 120psi for Wastewater and Drinking Water Treatment 8
  • All inquiries replied within 24 working hours
  • Professional pump producer with design team
  • Standard export wooden case packaging
  • Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment?
A: D/P, T/T, Western Union, please confirm with us with exact order.
Q: What is the delivery time?
A: Depends on quantity. Generally 1-7 working days.
Q: What about package?
A: Cartons with foam inside & wooden case & Pallet.
Q: How are the products delivered to us?
A: By International express or Sea.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Whether the products can be made of different standard?
A: Yes, we can produce according to custom requirements.
